Introducing the ultimate side hinged garage door operator
|
|
 |
German
Quality at your Fingertips !
five year
manufacturers warrantee |
|
Seip TM80 electric operator -
the ultimate choice for side hinged doors
Ultra quiet DC motor with soft start & soft stop speed control
|
Unrivalled safety for
your family & pets |
|
Click to view more images

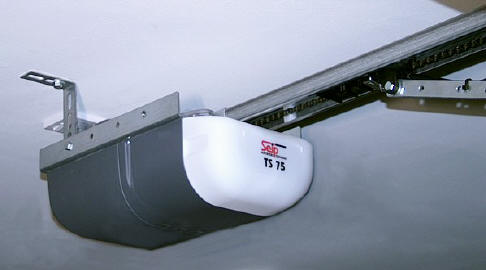

A typical installation |
The
Seip TM80 garage door operator is a well engineered German
made unit with many distinct advantages over the competition, the
most notable being progressive acceleration and deceleration of the
motors speed to provide smoother door movement with reduced stress &
quieter door closure by slowing down just prior to closing and its
ability to automatically learn and memorize the precise operating
characteristics of your door and stop the motor immediately an
|
obstruction is detected to provide the highest
possible level of safety for your family & pets and also protect the
doors from damage should they become obstructed.
Maintenance-free with
quick & simple Installation
Seip's unique track design with pre-assembled maintenance-free self
adjusting chain tension makes D.I.Y. installation a joy ! |
|
Don't just take our word for it ! -
Read what ours customers say ! |
|
Just completed fitting a
Seip electric operator, excellent construction, easy to align,
just follow the comprehensive instructions. A 1st rate company who
understands the customer - Recommended -
Steve Rowe, Formby, Lancs. |
|
Excellent work, extremely happy with the Amourelle barn door
automation installation. I really recommend this firm - very tidy and
thorough. A true craftsman !
Nigel Smith, Camberley, Surrey. |
|
|
Read more reviews from
satisfied customers |
|
|
Prices & On-Line Ordering |
|
The prices shown below include 2 x 'Midi' SKR433-3 remote controls as standard, however you can add additional remotes of either style to your order if desired. Prices for additional remotes can be found above.
How to order:
Enter the keyfob quantities you require into the boxes beside the Seip operator model of your choice, if you do not wish to add extra remotes then simply leave the quantity at zero. Once you have made your choice, click 'Buy Now' & proceed to the checkout.
|
|
Please note, the TM80 is now discontinued. Please call us for a suitable replacement.
Seip
TM80 operator with AP2006 barn door arms to suit one pair of
side-hinged
doors up to 3Mtrs total opening width
Remote Controls: includes 2 x 'Midi' SKR433-3 remotes as standard
|
|
|
Availability:
Discontinued
|
Order on-line by 12 noon for
Next-Day delivery |
|
|
Securi-Dor
Special - Save £ & Defeat the Burglar
With our
Securi-Dor AP2007
automatic multi-point locking
system
(this discount deal will be offered to you at the on-line checkout) |
Free
Delivery option to most
Mainland UK*
destinations
*carriage charges apply on deliveries to some remote locations
(see
Courier delivery map for details)
PLEASE NOTE:
Orders received by 2pm Monday to Thursday are despatched by overnight courier for delivery the next working
day. If you are not at home to sign for the parcel from, 8.30AM to 5.30PM
please provide an alternate address on our on-line order checkout page
Seip operators are available to UK & European specification only
We do not export Seip operators overseas
|
Overview of features |
|
Quick assembly system
Automatic chain tensioning
Automatic force measurement to
EN 12453 safety spec.
EN 12445 compliant & CE-compliant
Ultra quiet DC motor with soft-start and soft-stop speed
control
Low power consumption (2 Watts standby)
Totally maintenance free - no oiling required
Five year manufacturers guarantee
(including transmitters)
Secure 433MHz rolling code remote control system
2 or 4-channel keyfob style transmitter option
Wall mounted push button supplied as standard
|
Battery backup & solar powered versions available
>
details
Automatic integral 230V 28 Watt halogen courtesy light
Adjustable automatic courtesy light time duration
Pre-movement warning light (optional)
Automatic reverse if obstruction detected during closure
Connections for optical break-beam safety stop device
Emergency manual release cable supplied as standard
(for use either via a locking door handle or as a pull-cord)
Low head-room steel 'C' rail drive track,
a minimum
of 35 mm above the door is all that is required
|
|
|
|
Technical Specifications - Seip TM80 |
|
Pulling Force: (nominal/peak) |
80kg/90kg |
|
Automatic Self
Learning Force-Setting: |
Yes |
|
Motor: |
24 V dc - low-noise |
|
Max. Running Speed: |
14 cm/sec |
|
Internal
Courtesy Light: |
230 Volt 28 Watt halogen |
|
Pre-Warning Light:
(to warn of
pending door movement) |
programmable
option |
|
Timed Auto Close: |
programmable option (30 secs to 2 mins) |
|
Adjustable
Light Duration: |
10 secs. to 10 mins |
|
Duty Cycle:
|
50% |
|
Soft-Stop
adjustable in closing direction |
Yes |
|
Power Supply: |
230V AC mains
(via UK
13A plug) |
|
Normal Running
Length: |
264cm |
|
Overall Length: |
316cm |
|
Motor Head Height:
(including track) |
11cm |
|
Motor Head Width: |
17.5cm |
|
Motor Head Length: |
36cm |
| C-rail
track dimensions: |
75mm x 33mm |
| C-rail &
chassis construction: |
2mm zinc coated steel |
|
Minimum Space above the Door: |
35mm |
|
Shipping Weight:
(including barn door arms) |
26kg |
|
|
|
|
Click image to enlarge
A wall mounted pushbutton
switch
is included |
Seip operators are supplied with the following:
- Comprehensive DIY manufacturer installation instructions
- Wall mounted internal pushbutton control switch
- 40 Watt Courtesy lamp bulb
- Mounting brackets
- Fitted 13A mains plug
- Cable operated emergency manual release info
(this can be connected to the door's existing locking handle
to enable manual operation from outside)
- Expert telephone assistance to ensure hassle-free DIY installation
|
|
Optional Accessories
All our prices are subject to 20% UK VAT |
|
|
Click image to enlarge
 |

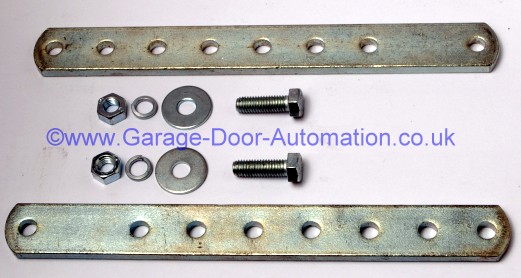

Motor mounting brackets (one
pair)
dimensions: 225mm x 93mm x 35mm
One pair are included with all Seip operators but extension
brackets will be required if the distance from the top of your door to the
ceiling is greater than 250mm
(Note: if hammered out flat, these brackets can extend the original brackets by up to 275mm)
supplied with nuts, bolts & washers as illustrated
Our ref: APL0046
|
|
|
|
|
Click image to enlarge
 |
Steel punched angle brackets (one pair)
dimensions: 23mm x 23mm x 760mm
supplied with nuts, bolts & washers as illustratedOur ref: APL0047
|
£
excl. VAT |
|
|
|

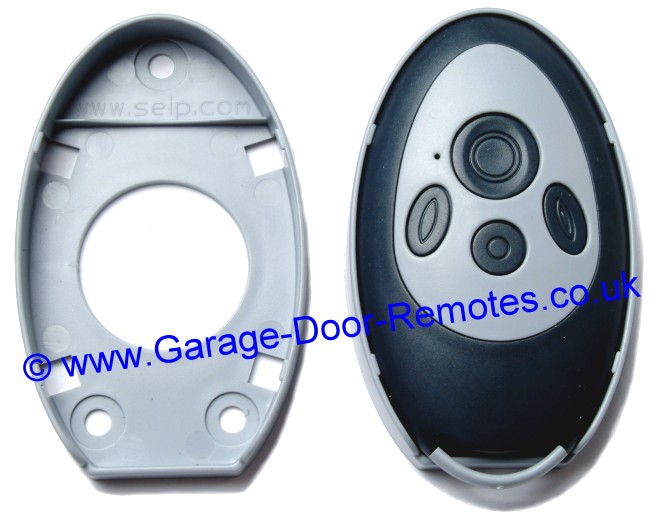

Seip midi holder
|
Wall holder for oval midi keyfob
This will convert a
Seip midi keyfob
into a wireless wall control switch
(keyfob can be removed easily for portable use)
Our Ref: SEIPMH03
Replacement Seip keyfob transmitters |
£
excl. VAT |
|
|
|

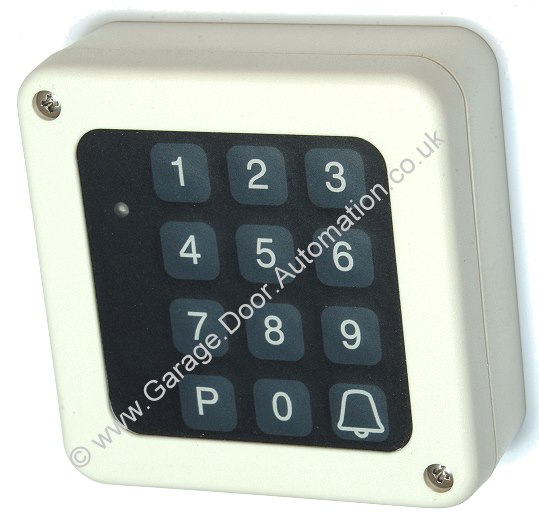

Seip wireless keypad |
Wireless external digital numeric entry keypad
can be programmed with up to four separate personal security codes to
provide individual control of four doors or gates -
compatible with all current Seip door operators
and Seip
EKR1MCG &
EKR1MCT receiver units
only
Two alkaline AA batteries are included and the
unit
has a battery life of approximately 5 years.
dimensions 83mm x 86mm x 29mm
Seip Ref: SKR4C433-1
|
£
excl. VAT
|
|
|
|
Domino numeric
digital entry keypad
|
Domino
external digital entry system
The DOMINO keyless
digital entry
system is
a simple and
secure way to open and close
your garage door without the need for a key or remote
control.
(three 'AA' batteries included)
Our Ref: GD-1
|
|
|
|
|
Click image to enlarge
 |
Securi-Dor
automatic bottom locking kit
for AP2006 barn door operating arms
Our Ref: AP2007
|
£
excl. VAT |
|
|
|
|

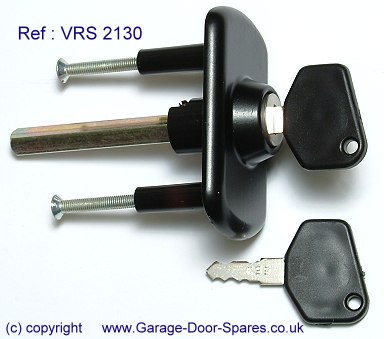

External
emergency release kit
Includes a locking handle
with two keys,
bowden cable and all necessary fittings.
Our Ref:
AP2008
This item has been discontinued
|
|
•
Hardware & Fixings
•
|
Request
a specification by e-mail for
a Seip operator to suit your door
|
Would
you like to add remote control to
your: |
|
 |
Garden Lighting
Water Features
Pond Pumps
or
Entrance Gates ? |
|
Seip manufacture a receiver to enable items such as gates or garden
pumps & lights etc. to be operated from spare buttons on your Seip
keyfob transmitter, the receiver is housed in a weatherproof enclosure
making it suitable for indoor or outdoor applications
Range aprox 75 - 100mtrs
Click Here for Further Details |
|
|
•
